How to bench & adjust datum

1. Set up a stable benchmark

  • The goal is to bench the machine: verify that the GPS coordinate at the bucket matches the site datum.

  • Ask your surveyor to install a benchmark:

  • In a solid location that will not move

  • Where the machine can easily reach it

  • Make sure the benchmark is protected and accessible for the machine to touch accurately.

2. Position the bucket on the benchmark

  • Carefully move the machine close to the benchmark.

  • Place the tip/corner of the bucket directly on top of the benchmark.

  • Be careful not to disturb the survey mark while doing this.

3. Open the bucket coordinate screen

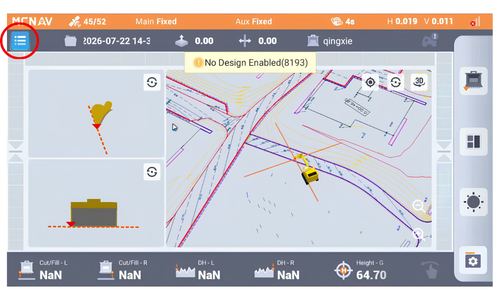

Technical Support Resources TX73 Hoe to Bench and Adjust Datum Opening the co-ordinate Screen

  • On the machine, go to: Main menu > Config > Bucket coordinates

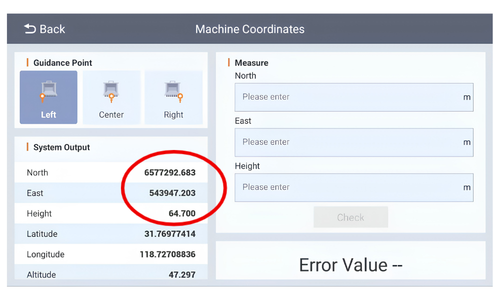

  • This screen shows the GPS coordinate being read at the tip of the bucket.

  • Expect the numbers to bounce slightly as GPS corrections update; that is normal.

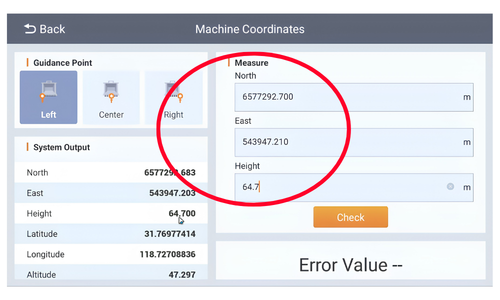

4. Enter the benchmark coordinates from the surveyor

4. Enter the benchmark coordinates from the surveyor

  • Ask the surveyor for the benchmark’s known coordinates.

  • Type the benchmark values directly into the coordinate fields:

  • North

  • East

  • Height 

5. Compare the machine reading to the benchmark

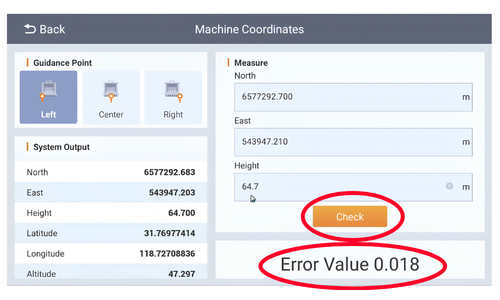

Technical Support Resources TX 73 Compare Machine Reading for bench and Adjust Datum

  • Press Check to compare the machine’s bucket position against the benchmark.

  • The system will show the difference between the two sets of coordinates.

  • A small difference may be acceptable, depending on your tolerance. In the example, the difference is 18 mm.

6. Adjust antenna offset if the height is off

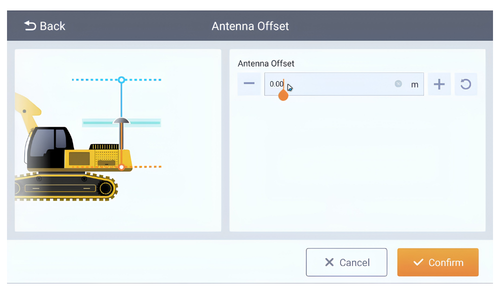

Technical Support Resources TX 73 Antenna Offset. Bench and Adjust Screen

  • If the bucket height/RL is not matching the benchmark, adjust the antenna offset.

  • Example:

  • Benchmark RL = 64.65

  • Machine reading = 64.70

  • Difference = 50 mm

  • Go back to:

  • Config

  • Antenna offset

  • Enter the required adjustment and confirm it.

7. Recheck the bucket coordinates

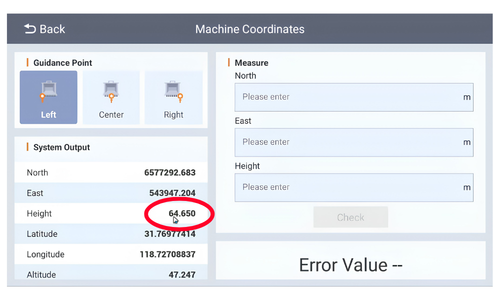

Screen of CHCNAV TX73 Machine Control showing the workflow of how to recheck the bucket co ordinates within the bench and adjust datum workflow

  • Return to Bucket coordinates and verify the updated reading.

  • The RL should now match the surveyor’s benchmark value.

  • This confirms the antenna has been calibrated correctly for height.

8. Load a site calibration if northing/easting are still wrong

  • If the northing and easting do not match the benchmark coordinates, the issue is not just antenna height.

  • In that case, you likely need a site calibration file from the surveyor.

  • Load the calibration file to correct the horizontal position as well as the vertical one.
